Plastic telescopic corrugated shrinkable pipe production line, plastic telescopic bellows shrinkable pipe equipment, folding drainage pipe production line,wash basin drainage pipe production line.
Plastic telescopic bellows corrugated shrinkable pipe use: lavatory sewage deodorization pipe, folding exhaust pipe, etc.Plastic telescopic corrugated pipe production process: automatic feeding machine - extruder - head - forming machine - shrinking machine - cutting machine - stocking

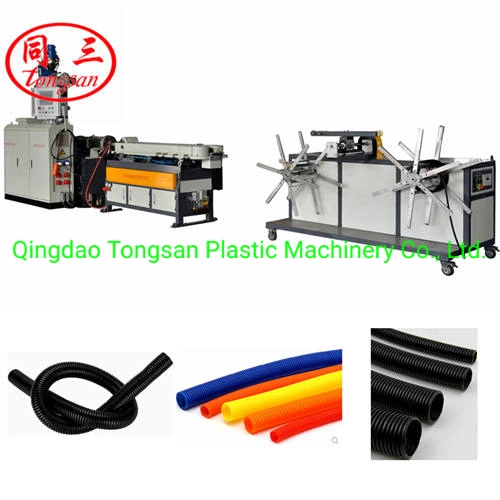

Normal speed corrugated pipe machine
4.5-110mm corrugated pipe making machine
Company is used to produce PP, PE, PVC, EVA, PA and other material single-wall corrugated pipes continuously.
Plastic single wall corrugated pipes have features of strong thermo-stability, corrosion resistance, abrasion resistance, high intensity, good flexibility, etc.
Single wall corrugated pipes are widely applied in many fields such as electrical thread-passing pipes, circuit of machine tool,protective pipe of lamps, water pipes in air conditioner, washing machine, bathroom, etc.
Pipe diameter range | 4.5mm-12mm | 9mm-32mm | 12mm-50mm | 50mm-110mm |
Model of extruder | SJ45 | SJ50 | SJ65 | SJ65 |
Production capacity | 20-30kg/h | 40-50kg/h | 60-70kg/h | 70-90kg/h |
Power of extruder | 7.5kw | 15kw | 30kw | 37kw |
Power of forming machine | 1.1kw | 1.5kw | 4kw | 4kw |
Pairs of modules | 42pairs | 50pairs | 50pairs | 70pairs |
Cooling mode | Wind&Water cooling | Wind&Water cooling | Wind&Water cooling | Wind&Water cooling |
Production speed | 6-10m/min | 8-12m/min | 8-12m/min | 2-6m/min |
High speed single wall corrugated pipe making machine
GSDBGZ high speed plastic pipe extruder machine 4.5-53mm single wall corrugated pipe production line is developed on the basis of our original single-wall corrugated pipe machine.The molds are moved by gear on the runway. It is equipped with specially designed water cooling sealing system, and the
lubrication oil can be injected automatically.
In the forming machine, for small sizes mould, it can be set with two mould chambers which can make two different sizes of pipes only by adjusting the height of forming machine automatically.
All these features improve the production speed of single wall corrugated pipes to a great extent, which can reach 20-25m/min.
Besides, the production line is equipped with pre-stress eliminating cooling device, automatic tapping machine in production line and automatic coiling machine, and it is especially suitable for the production of car harness corrugated pipes.
| Pipe diameter range | Pipe diameter range | 9mm-50mm | 9mm-53mm (Pipe with joint) |
| Model of extruder | SJ45B | SJ65B | SJ65B |
| Production capacity | 20-30kg/h | 60-80kg/h | 70-90kg/h |
| Power of extruder | 7.5KW | 30KW | 37KW |
| Power of forming machine | 1.1KW | 4KW | 4KW |
| Pairs of modules | 63 pairs | 72pairs | 72pairs |
| Cooling mode | water cooling | water cooling | water cooling |
| Production speed | 10-20m/min | 20-25m/min | 20-25m/min |
PP twin wall corrugated sheet making machine
Qingdao Tongsan hollow corrugated sheet making machine can produce the sheet with the width of 1220-2450mm and thickness of 1.5mm-12mm.Models of PP twin wall corrugated sheet making machine
We have different models of PP corrugated sheet machine for making different width of final product| Model | Sheet width | Sheet thickness | Extruder Model | Motor Power |
| TS-1400 | 1250mm | 1.5-12mm | 100/36 | 55-75kw |
| TS-1800 | 1700mm | 1.5-12mm | 120/36 | 75-90kw |
| TS-2300 | 2150mm | 1.5-12mm | 120/36 | 90-110kw |
| TS-2600 | 2450mm | 1.5-12mm | 120/36 | 90-110kw |
| TS-3000 | 2800mm | 1.5-12mm | 150/36 | 132kw |
PP PE plastic corrugated hollow sheet making machine
This production line realizes continuous production of PC/PE/PP hollow grid plate, which is applicable to construction decoration, advertisement collocation, and noise insulation of highway as well as packaging. PE/PP hollow grid plate is an ideal substitute for paper box in making packaging box. It is characterized by light weight, high intensity, dampproof, and anticorrosion. The width of the products is 1220-2100mm, and the thickness is 2mm-12mm.
Extruder for pp hollow sheet machine: The specially designed screw and the advanced controlling system ensure excellent plasticization, high output and stable extruding.
Co-extruder for the PP hollow sheet machine. the co-extrusion system is used for making AB layer PP hollow sheet.
the inner layer can use recycled PP material or High PP filling material.
Mould for pp hollow sheet machine: Mould adopts high-quality alloy steel and throttling device to ensure even pressure of feed influent at the mould lips, and also differential action of up-down piece guarantee even thickness of the plate.
