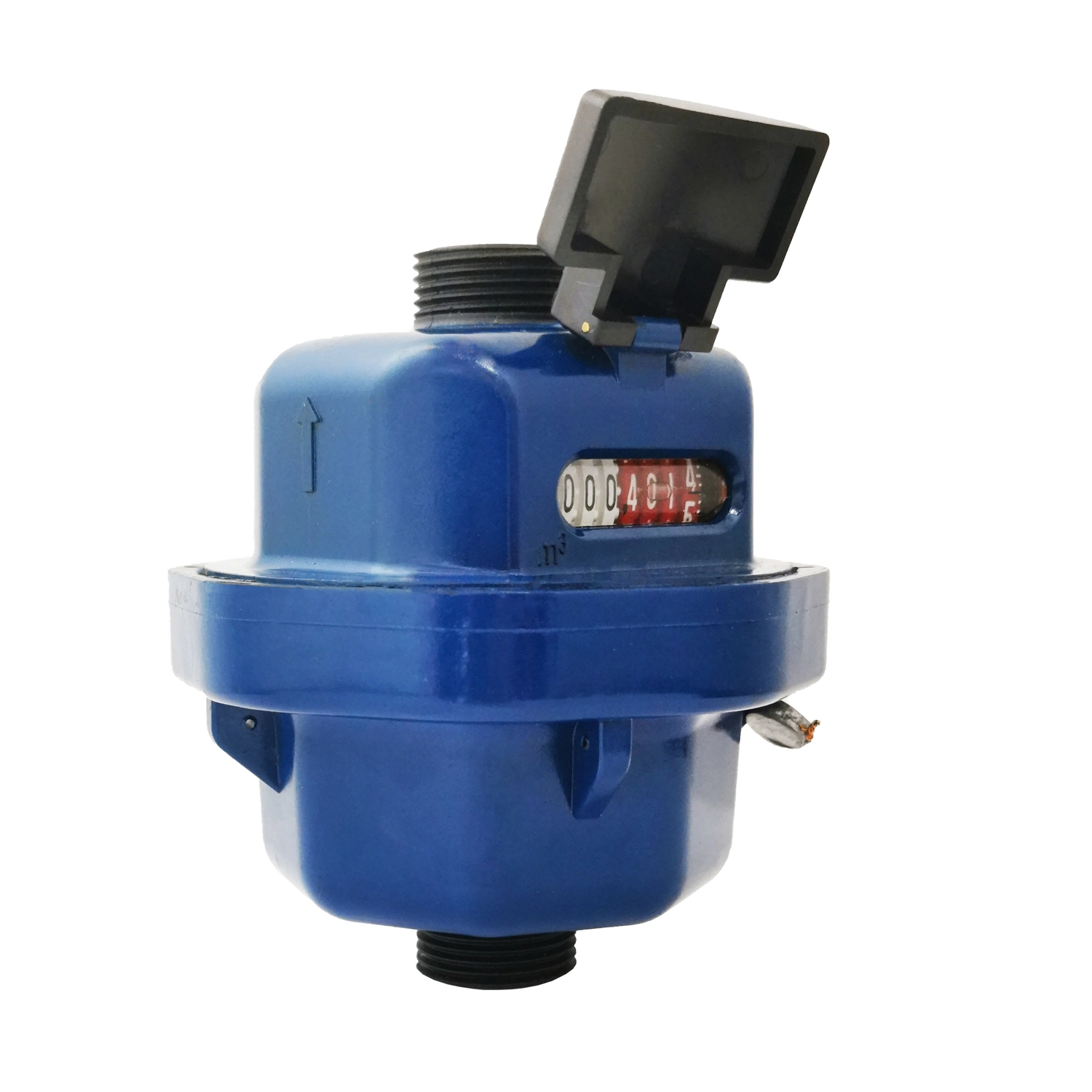

Volumetric Piston Type
Material body: Nylon Plastic
Size: DN15mm( 1/2"), Available for cold water(40°C)
Accuracy: ISO 4064, Class C standard, R160/ R200
Easy for interchange & maintenance
MAIN TECHNICAL DATA
| Meter size Dia DN (mm) | Class | Qs Overload Flow | Qn Nominal Flow | Qt Transitional Flow | Qmin Min Flow | Min Reading Lectura | Max Reading Lectura |
| m3/h | 1/h | m3 | |||||
| 15 | C | 3 | 1.5 | 22.5 | 15 | 0.0001 | 9999 |
INDICATING ERROR
At low zone is ±5% from minimum flow rate (qmin) to transitional flow rate (qt) exclusive boundary
At high zone is ±2% from transitional flow rate (qt) to overload flow rate (qs)
DIMENSIONS AND WEIGHT
| Meter size Dia DN (mm) | L Length | L1 Width | W Height | Connrcting Thread D | Weight Kg | ||
| mm | |||||||
| 15 | 115 | 209 | 100 | G 3/4B | 0.39 | ||
WORKING CONDITION
Water temperature:≤40ºC for cold water meter
Working pressure:≤1.6Mpa
