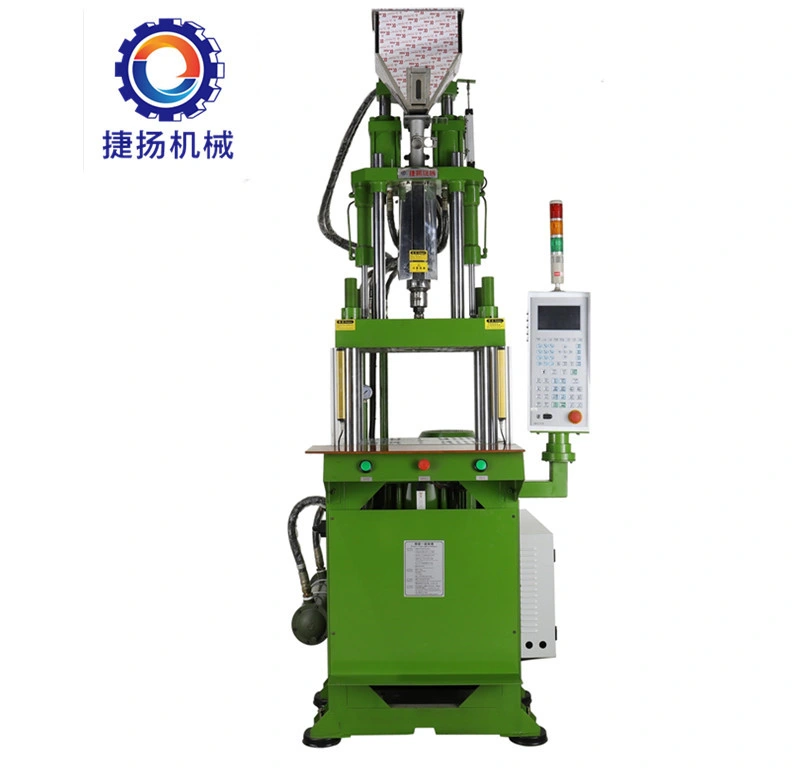

55 tons injection molding machine for Nylon PA66/PVC/PP/PET/TPU plastic
Function:
1. Vertical direct hydraulic clamping system is designed for accurate, safe operation, especially suitable for insert molding.With double slide table or rotary design, put-in, take-out products and molding finish
at the same time, which is more safe and efficient for production , then reduce the cost of production.
2. High precision mold platen ( Parralelism/ flatness : 0.01/100mm), heavy-duty tie-bars, and low-pressure mold clamping work together to greatly extend machine & mold life.
3. Nitride and NIP/ Nitroflon coated screws and barrels are longlasting, robust and provide superior acid/alkaline resistance.Heavyduty double cylinder injection unit is maintenance friendly and free of oil leaks.
4. All series adapted Variable pump +PQ valves enable energy savings of 30~50%.
5. Proportional hydraulic control system provides low noise, low energy consumption, and smooth machine movements with durable life.
Packing & Shipping :
1. Before shipping,we will check and test the machine carfully.
2. We will arrange to manufacture the second day after confirmation,we can delivery it usually after 25 days.
3. According to the destination,we will compare several transportation companies and select the most suitable
and economic one to provide service for us
FAQ:
Q1: Are you a trading company or a manufactory?
A1: We own a factory ourselves, and we can assure the quality we manufactured.
Q2:What's your guarantee or the warranty of the quality if we buy your
machines?
A2:We offer you high quality machines with high quality afterservice. Also we have
one year warranty of the spareparts, free of charge.
Q3: Why choose Jieyang Machinery Co.,Ltd.?
A3: Our products with more than 30% energy saving. Highest Cost effective
environmentally. Excellent pre-sale and after-sale services.
Youtube Video of Vertical Injection Molding Machine:
1. https://youtu.be/057GXPzqVdg (15tons for usb cable)
2. https://youtu.be/GbqaFx6VfRw (15tons for patch cord)
3. https://youtu.be/rFBT0hXSCQQ (25tons for dc plug )
4. https://youtu.be/RpGH9oKupH8 (25tons for VGA)
5. https://youtu.be/o4TZ7Kc8RJ4 (25tons for fuse holder)
6. https://youtu.be/o1kMwthMx-I (35Tons for Oxygen tube)
7. https://youtu.be/CHEJshwKrXU (35tons for security seal lock)
8. https://youtu.be/L7DKbu1cj3s (lab dumbbell plastic sample)
9. https://youtu.be/ulByfm50_bs (45tons for BS plug )
10. https://youtu.be/P1OLBd652Xo 45tons for Tools plug
11. https://youtu.be/KEQ67i4lPJY 45tons for Europeran plug
12. https://youtu.be/37wobT7-tqY C type 55tons for European plug
13. https://youtu.be/EKRNtaxmtTc Single Sliding Vertical Injection Molding Machine
14. https://youtu.be/iUOU47cxrAg double Sliding Vertical Injection Molding Machine
15. https://youtu.be/fY_RkC-bt9Y Door handle making by rotary table injection machine
16. https://youtu.be/6pyClKEu5XQ Glue nails making by rotary table injection machine
17. https://youtu.be/EHPlnn88Qe0 Two color rotary table injection machine
18. https://youtu.be/Fno7_FFUY1c Vietnam feedback video (rotary table injection machine overmolding speaker)
19. https://youtu.be/RgFyyAi9sbo Vietnam feedback video about making plug insert
20. https://youtu.be/CPJonVclpLo Thailand client feedback video about making 3 pins plug
21. https://youtu.be/Wo3xcb1QtFU South Korea feedback video
22. https://youtu.be/CzQ2ThInMEQ Italy client feedback video
23. https://youtu.be/q2ZN-rW9A-Y Syria client feedback video
24. https://youtu.be/RKIp2l_Yvko Tuniasia client feedback video
25. https://youtu.be/uUZ6igo_oHs Germany client feedback video
26. https://youtu.be/r3pL9n33fvU Argentia client feedback video
27. https://youtu.be/IdGpr7y5mMw India client feedback video (rotary table injection machine )
28. https://youtu.be/6zcRdcOyjgw India client feedback video (standard 55tons injection machine making cap )
29. https://youtu.be/61LqO6cLp3o India client feedback video (usb cable)
30. https://youtu.be/cs4wERUMoNI Sri Lanka client feedback video
31. https://youtu.be/84lbRneECYk Pakistan client use our machine
32. https://youtu.be/r3PO370hQko Turkish client feedback video
33. https://youtu.be/vrr6oJTrsj8 Egypt client feedback (55tons injection machine making plug )
34.https://youtu.be/SaxEgd-DfrU Mexico client feedback video
Function:
1. Vertical direct hydraulic clamping system is designed for accurate, safe operation, especially suitable for insert molding.With double slide table or rotary design, put-in, take-out products and molding finish
at the same time, which is more safe and efficient for production , then reduce the cost of production.
2. High precision mold platen ( Parralelism/ flatness : 0.01/100mm), heavy-duty tie-bars, and low-pressure mold clamping work together to greatly extend machine & mold life.
3. Nitride and NIP/ Nitroflon coated screws and barrels are longlasting, robust and provide superior acid/alkaline resistance.Heavyduty double cylinder injection unit is maintenance friendly and free of oil leaks.
4. All series adapted Variable pump +PQ valves enable energy savings of 30~50%.
5. Proportional hydraulic control system provides low noise, low energy consumption, and smooth machine movements with durable life.
| Model | Unit | JY-550ST | ||
| Screw Barrel Diameter | mm | 32 | 34 | 42 |
| Injection Pressure | kg/cm2 | 1642 | 1385 | 960 |
| Max. Shot Weight | gram | 102 | 123 | 176 |
| Max. Shot Weight | cm3/sec | 49 | 59 | 84 |
| Screw Barrel Route | mm | 140 | ||
| Screw Barrel Rotary Speed | rpm | 0-175 | ||
| Nozzle Contact Force | tons | 5.5 | ||
| Nozzle Retraction Nozzle | mm | 210 | ||
| Number of Temperature Control | pcs | 3 | ||
| Clamping Force | tons | 55 | ||
| Platen Size | mm | 670*480 | ||
| Distance Between Tie Bere | mm | 470*280 | ||
| Min. Mold Height | mm | 270/70 | ||
| Opening Stroke | mm | 200 | ||
| Max. Opening Mold Distance | mm | 470/270 | ||
| Ejetor Force | tons | 1.76 | ||
| Ejetor Stoke | mm | 35 | ||
| Max. Hydraulic Pressure | kg/cm2 | 140 | ||
| Pump Output | L/min | 40 | ||
| Oil Resservoir Capacity | Liter | 150 | ||
| Cooling Water Consumption | L/hr | 800-1000 | ||
| Pump Motor Power | kw/hp | 7.5/10HP | ||
| Barrel Heating Power | kw | 4.5 | ||
| Total Power | kw | 12 | ||
| Machine Weight | tons | 3 | ||
| Machine Dimension(LxWxH) | meter | 1.85*1.2*3 | ||
| Shipping Weight | tons | 2.5 | ||
| Shipping Measurements(LxWxH) | meter | 1.945*1.35*2.44 | ||
