Technical Specification
Product Features
1. China-Japan latest technology cooperation, high reliability.
2. Oil Cooling Permanent Magnetic Motor.
3. IP65 protection grade & heavy duty air filter, suitable for high dusty environment.
4. IE4 Efficiency motor efficiency.
5. Most energy saving mode, Only work at loading.
6. Wide frequency range 25%-100%.
7. Premium Magnetic material resist more than 180ºC temp.
8. Reliable PM motor supplier from Italy.
9. Direct Taper connection, no transmission power loss, easy maintenance.
10.Touch Screen PLC with preset running schedule, more intelligent control.
11. Both main motor and fan motor are inverter control, more accurate control.
12. Easy for installation and service.
13. Fantastic Energy Saving, save up to more than 30-40%.
Company Name: Shanghai Screw Compressor Co.,Ltd
Telephone: +86-021-57383073
Contact Person: Vincent Sun
Website: http://shscrew.en.made-in-china.com

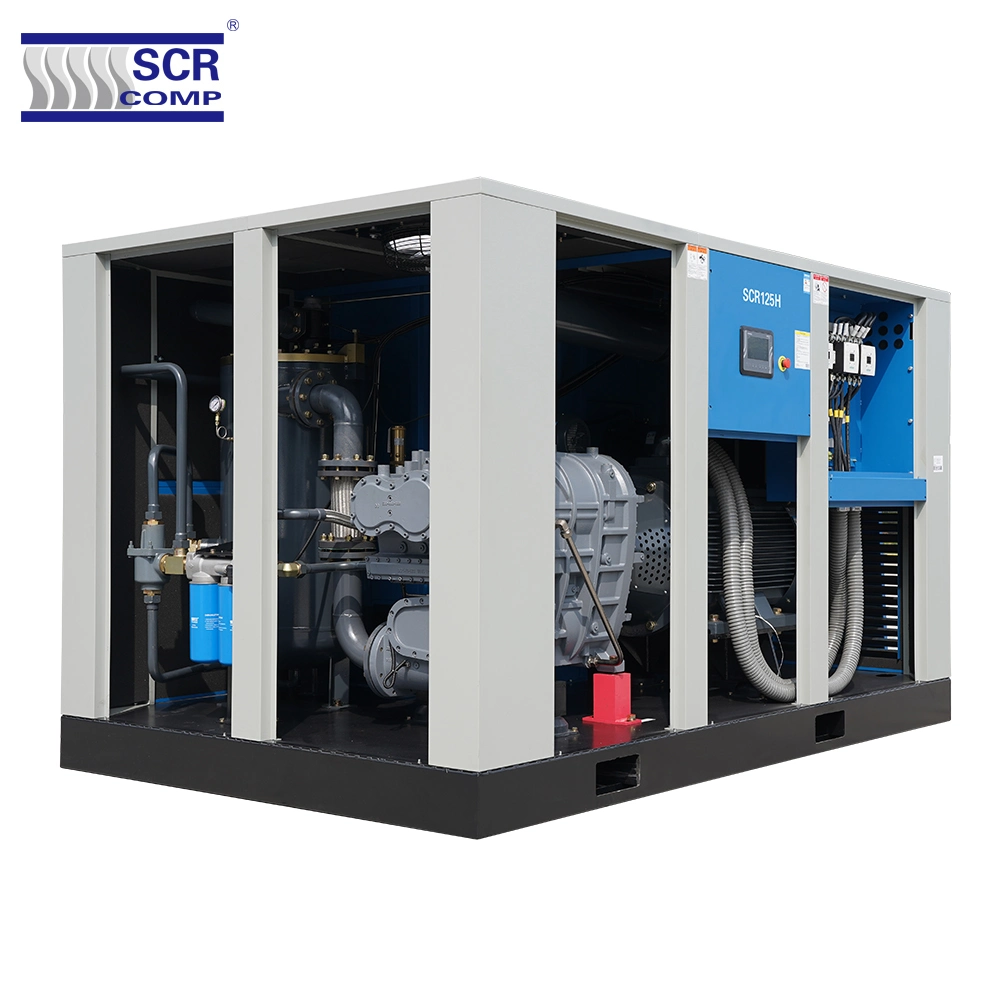

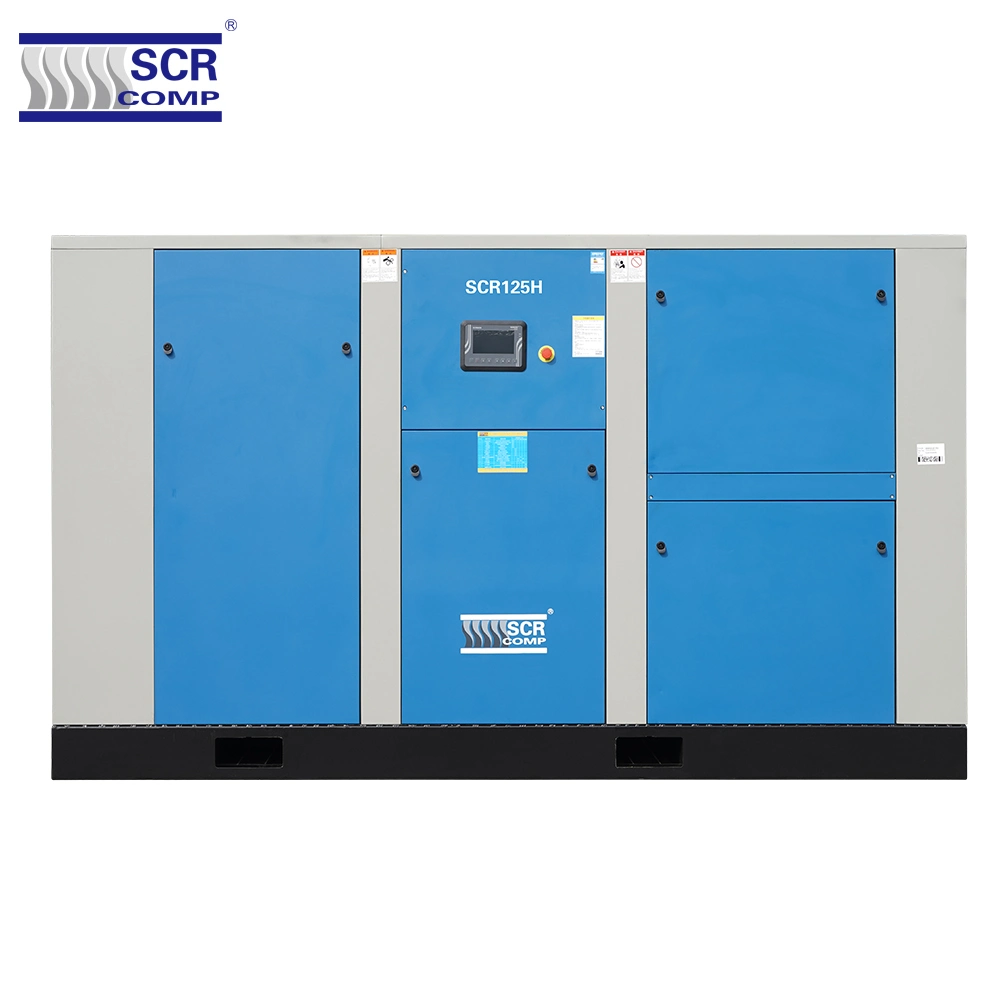

| Model | SCR125H-7 | SCR125H-8 | SCR125H-10 | SCR125H-12.5 | |
| Capacity/Pressure(m3/min,/BAR) | 21/7 | 19.4/8 | 17.5/10 | 14/ 1.25 | |
| Motor | Power(KW) | 90KW(125HP) | |||
| Speed(r/min) | 1485 | ||||
| Starting way | Start-delta starting | ||||
| Volt(V) | 380 | ||||
| Motor safety grade | IP54 | ||||
| Full Start Current (A) | 195 | ||||
| Electrical Supply | 380V/30-50Hz/3Phase | ||||
| Outlet Temperature(ºC) | ≤ ambient Temperature+10ºC | ||||
| Driven way | Direct Driven | ||||
| Noise level at 1 meter | 76±3dB(A) | ||||
| Cooled method | Air /Water cooling | ||||
| Oil content | 1-3ppm | ||||
| Outlet Connection | DN65 | ||||
| Dimension | Length(mm) | 2800 | |||
| Width(mm) | 1750 | ||||
| Height(mm) | 1700 | ||||
| Weight(kg) | 3500 | ||||
Product Features
1. China-Japan latest technology cooperation, high reliability.
2. Oil Cooling Permanent Magnetic Motor.
3. IP65 protection grade & heavy duty air filter, suitable for high dusty environment.
4. IE4 Efficiency motor efficiency.
5. Most energy saving mode, Only work at loading.
6. Wide frequency range 25%-100%.
7. Premium Magnetic material resist more than 180ºC temp.
8. Reliable PM motor supplier from Italy.
9. Direct Taper connection, no transmission power loss, easy maintenance.
10.Touch Screen PLC with preset running schedule, more intelligent control.
11. Both main motor and fan motor are inverter control, more accurate control.
12. Easy for installation and service.
13. Fantastic Energy Saving, save up to more than 30-40%.
