High quality truck jack pad/ customized impact resistant uhmw-pe pad/ plastic recycled outrigger pads
Outrigger pads are made in UHMWPE or HDPE material, an engineering material that offers a superior combination of impact strength, wear and chemical resistance. Each pad is equipped with a durable rope handle to allow for easy storage and mobility. UHMWPE/ HDPE Outrigger Pads are an alternative to wood pads due to their superior characteristics and performance which allows them to last longer.
XINXING UHMWPE crane mats and outrigger pads material have the following advantage:
-Apply the Right material for your application
- good tensile strength
-good impact intensity
-super compression strength
-good breaking elongation
-15 Percent the weight of steel pads
-Chemically inert, serviceable from 180° F to - 250° F
-Corrosion, chemical, wear and moisture resistant.
-Non-stick surface, easy to clean.
-Compressive loads up to one million pounds
-Up to 15,000 pounds per square foot
Benefits of using Xinxing Crane mats and Outrigger pads:
1.Lihgtweight 1/7th weight of steel,1/4 weight of Aluminum, can easily be handled by one person
2.Cost efficient Outrigger pads working life is very long. No pilferage Value. Price is competitive.
3.Strong and steady
XINXING Outrigger pads can load heavy pressure.
Will not break or splinter. Retain their shape.
Material has a memory, dose not warp or mushroom.
4.Easy to clean When it is dirty, just use water to lean
5.Corrosion and Rust resistant
6.Can work in hot or very cold conditions
7.Zero water absorption
8.Do not conduct electricity
9.Every special size, shape, design will be satisfied in XINXING
Different surface;
* nylon rope and rubber sleeve
* with hole holder on top/ side
Different shapes
Application:
Our outrigger pads put under the support-leg of Truck crane, crawler crane, rough crane, boom pump, concrete pump, fire truck, utility truck, tree trimmer, any type of aerial equipment, and so on. For making the machine work safely!
Shandong Ningjin Xinxing Chemical Co.,LTD
Crane outrigger pads specifics
Related products:
Outrigger pads are made in UHMWPE or HDPE material, an engineering material that offers a superior combination of impact strength, wear and chemical resistance. Each pad is equipped with a durable rope handle to allow for easy storage and mobility. UHMWPE/ HDPE Outrigger Pads are an alternative to wood pads due to their superior characteristics and performance which allows them to last longer.
XINXING UHMWPE crane mats and outrigger pads material have the following advantage:
-Apply the Right material for your application
- good tensile strength
-good impact intensity
-super compression strength
-good breaking elongation
-15 Percent the weight of steel pads
-Chemically inert, serviceable from 180° F to - 250° F
-Corrosion, chemical, wear and moisture resistant.
-Non-stick surface, easy to clean.
-Compressive loads up to one million pounds
-Up to 15,000 pounds per square foot
Benefits of using Xinxing Crane mats and Outrigger pads:
1.Lihgtweight 1/7th weight of steel,1/4 weight of Aluminum, can easily be handled by one person
2.Cost efficient Outrigger pads working life is very long. No pilferage Value. Price is competitive.
3.Strong and steady
XINXING Outrigger pads can load heavy pressure.
Will not break or splinter. Retain their shape.
Material has a memory, dose not warp or mushroom.
4.Easy to clean When it is dirty, just use water to lean
5.Corrosion and Rust resistant
6.Can work in hot or very cold conditions
7.Zero water absorption
8.Do not conduct electricity
9.Every special size, shape, design will be satisfied in XINXING
Different surface;
- Smooth Surface

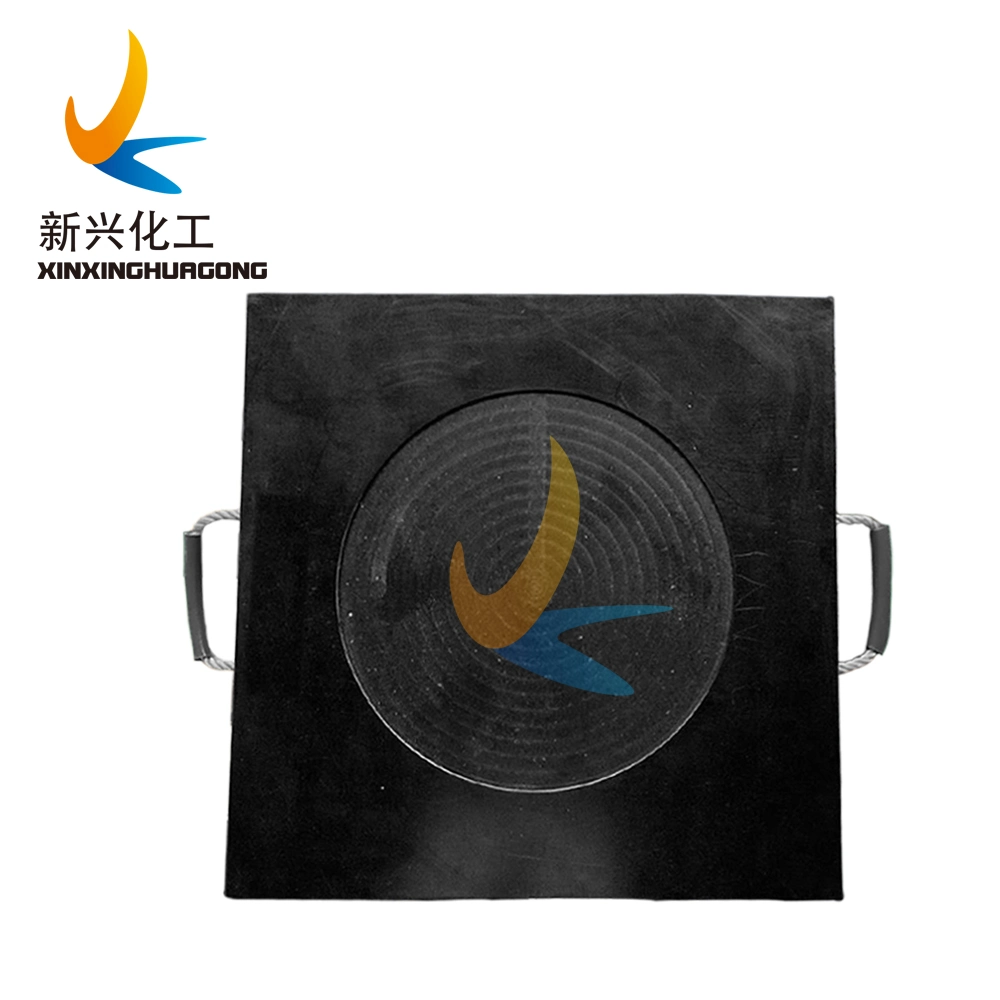

- B Circle in Middle
- Carved diamond pattern
- According to Custom, such as:LOGO

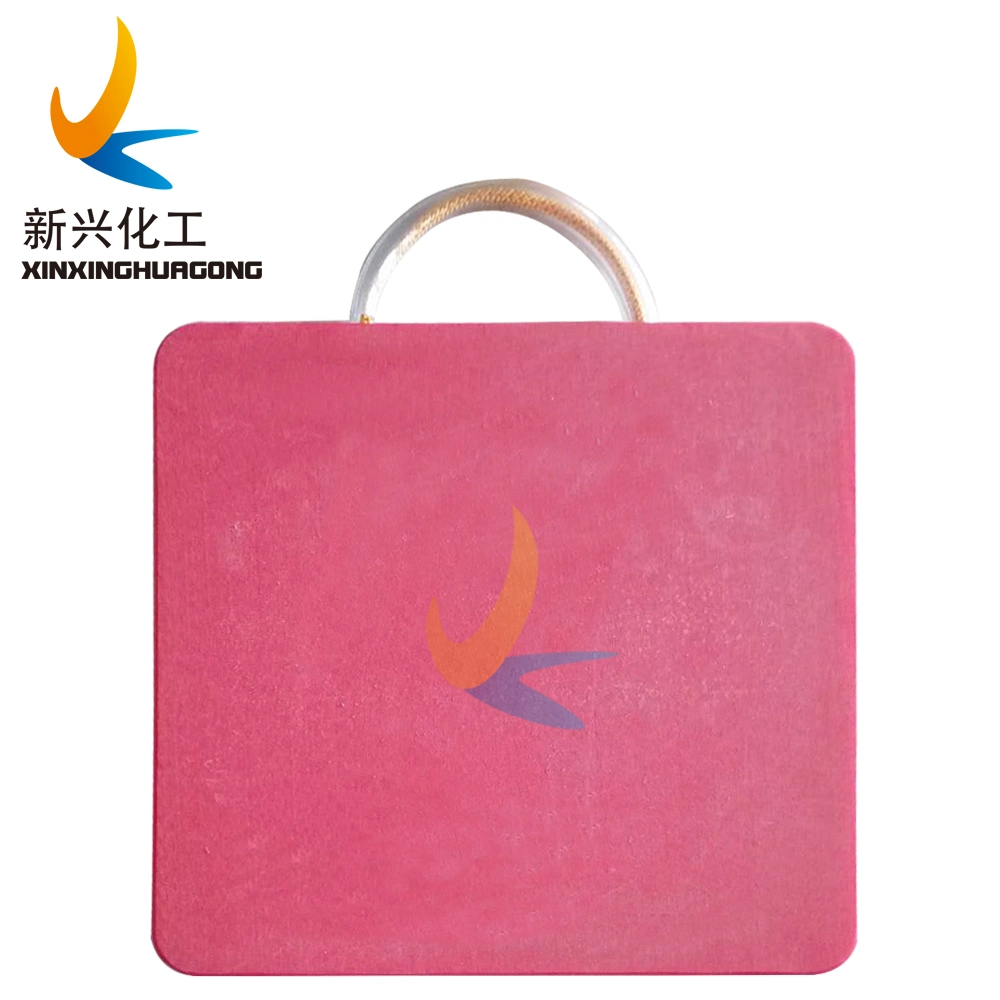

* nylon rope and rubber sleeve
* with hole holder on top/ side
Different shapes
- Square
- round
- rectangle
- customized
Application:
Our outrigger pads put under the support-leg of Truck crane, crawler crane, rough crane, boom pump, concrete pump, fire truck, utility truck, tree trimmer, any type of aerial equipment, and so on. For making the machine work safely!
Shandong Ningjin Xinxing Chemical Co.,LTD
Crane outrigger pads specifics
| Thickness()(inch) | Pad size()(inch) | Part Number() | 45 o Load()(ton) | Vertical Load() | PadWeight() |
| 1" Square | 18X18 | X1T1818 | 14 tonnes | 25 tonnes | 5.00kgs |
| 1" Rectangle | 20X24 | X1T2024 | 16 tons | 27tons | 7.63kgs |
| 1"Square | 24X24 | X1T2424 | 16 tonnes | 24 tonnes | 9.15kgs |
| 1"Square | 30X30 | X1T3030 | 18 tonnes | 36 tonnes | 14.3kgs |
| 1"Square | 36X36 | X1T3636 | 19 tonnes | 42 tonnes | 20.6kgs |
| 1"Square | 48X48 | X1T4848 | 22.5 tonnes | 59 tonnes | 36.62kgs |
| 1"Round | 30"Dia | X1TR30 | 12 tonnes | 28 tonnes | 11.23kgs |
| 1"Round | 36"Dia | X1TR36 | 15 tonnes | 32 tonnes | 16.16kgs |
| 1"Round | 48"Dia | X1TR48 | 18 tonnes | 45 tonnes | 28.75kgs |
| 1-1/2" Square | 18X18 | X1.5T1818 | 14 tonnes | 25 tonnes | 7.73kgs |
| 1-1/2" Square | 24X24 | X1.5T2024 | 16 tonnes | 27 tonnes | 13.73kgs |
| 1-1/2" Square | 30X30 | X1.5T3030 | 19 tonnes | 37 tonnes | 21.46kgs |
| 1-1/2" Square | 36X36 | X1.5T3636 | 20 tonnes | 43 tonnes | 31.00kgs |
| 1-1/2" Square | 48X48 | X1.5T4848 | 23 tonnes | 59 tonnes | 55.00kgs |
| 1-1/2" Round | 30"Dia | X1.5TR30 | 14 tonnes | 28 tonnes | 16.85kgs |
| 1-1/2" Round | 36"Dia | X1.5TR36 | 15 tonnes | 32 tonnes | 24.24kgs |
| 1-1/2" Round | 48"Dia | X1.5TR48 | 18 tonnes | 45 tonnes | 43.13kgs |
| 2"Square | 18X18 | X2T1818 | 14 tonnes | 26 tonnes | 10.30kgs |
| 2"Rectangle | 20X24 | X2T2024 | 18 tonnes | 28 tonnes | 15.26kgs |
| 2"Square | 24X24 | X2T2424 | 18 tonnes | 28 tons | 18.31kgs |
| 2"Square | 30X30 | X2T3030 | 19.5 tonnes | 38tonnes | 28.62kgs |
| 2"Square | 36X36 | X2T3636 | 20 tonnes | 44 tonnes | 41.20kgs |
| 2"Square | 48X48 | X2T4848 | 25 tonnes | 63 tonnes | 73.25kgs |
| 2"Round | 30"Dia | X2TR30 | 15 tonnes | 30 tonnes | 22.47kgs |
| 2"Round | 36"Dia | X2TR36 | 16 tonnes | 32 tonnes | 32.33kgs |
| 2"Round | 48"Dia | X2TR48 | 19 tonnes | 45 tonnes | 57.51kgs |
| 2 -1/2" Square | 24X24 | X2.5T2424 | 17.5 tonnes | 28 tonnes | 22.89kgs |
| 2 -1/2" Square | 30X30 | X2.5T3030 | 19 tonnes | 39 tonnes | 35.76kgs |
| 2 -1/2" Square | 36X36 | X2.5T3636 | 20 tonnes | 45 tonnes | 51.50kgs |
| 2 -1/2" Square | 48X48 | X2.5T4848 | 24 tonnes | 60 tonnes | 91.56kgs |
| 2 -1/2" Round | 30"Dia | X2.5TR30 | 15 tonnes | 29 tonnes | 28.09kgs |
| 2 -1/2" Round | 36"Dia | X2.5TR36 | 15.3 tonnes | 33 tonnes | 40.41kgs |
| 2 -1/2" Round | 48"Dia | X2.5TR48 | 19 tonnes | 46 tonnes | 71.88kgs |
| 3"Square | 24X24 | X3T2424 | 18 tonnes | 29 tonnes | 27.47kgs |
| 3"Square | 30X30 | X3T3030 | 20 tonnes | 40 tonnes | 42.92kgs |
| 3"Square | 36X36 | X3T3636 | 22 tonnes | 47 tonnes | 61.80kgs |
| 3"Square | 48X48 | X3T4848 | 26 tonnes | 66 tonnes | 109.87kgs |
| 3"Round | 30"Dia | X3TR30 | 15 tonnes | 30 tonnes | 33.70 kgs |
| 3"Round | 36"Dia | X3TR36 | 16 tonnes | 36 tonnes | 48.49kgs |
| 3"Round | 48"Dia | X3TR48 | 20 tonnes | 51 tonnes | 86.26kgs |
 |  |
 |  |
