Company Introduction

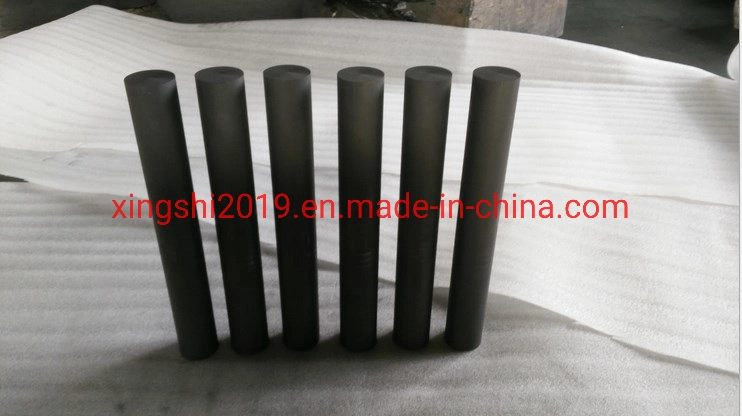

Our company supply variously Graphite rod products and Graphite electrodes ,graphite crucible , graphite block...etc, Variously grades ,specification and size . We are professional in carbon and graphite products .
We can manufacture according customers's drawing (CAD,HANDDRAWING OR OTHER) Welcome here for more products details .
Products Description
Physical and chemical index
| Item | Unit | Grade | |||||
| Max Grain Size | mm | 0.8 | 0.8 | 2 | 2 | 4 | 4 |
| Bulk Density | g/cm³ | ≥1.70 | ≥1.73 | ≥1.58 | ≥1.70 | ≥1.57 | ≥1.69 |
| Specific Resistance | µΩ.m | ≤8.5 | ≤8.0 | ≤11.5 | ≤8.5 | ≤11.5 | ≤8.5 |
| Flexural strength | Mpa | ≥10.0 | ≥12.0 | ≥6.0 | ≥9.0 | ≥6.5 | ≥9.5 |
| Compressive Strength | Mpa | ≥24.0 | ≥31.0 | ≥18.0 | ≥30.0 | ≥17.5 | ≥29.0 |
| Thermal Conductivity | W/(m.K) | ≥120 | ≥130 | ||||
| C.T.E(100-600)ºC | 10-6/°C | ≤2.5 | ≤2.5 | ≤2.5 | ≤2.5 | ≤2.5 | ≤2.5 |
| Ash Content | % | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 |
| Item | Unit | OZIM-1 | OZIM-2 | OZIM-3 |
| Grain | mm | ≤325mesh | ≤325mesh | ≤325mesh |
| Bulk density | g/cm³ | ≥1.68 | ≥1.78 | ≥1.85 |
| Specific resistance | µΩ.m | ≤14 | ≤14 | ≤13 |
| Flexrual strength | Mpa | ≥25 | ≥40 | ≥45 |
| Compressive strength | Mpa | ≥50 | ≥60 | ≥65 |
| Ash content | % | ≤0.15 | ≤0.1 | ≤0.05 |
Isostatic graphite
| Item | Unit | Domestic material | Import material |
| Bulk dengsity | g/cm³ | 1.8-1.85 | 1.92 |
| Specific resistance | μΩ.m | ≤15 | 10 |
| Flexrual strength | Mpa | ≥40 | 63.7 |
| Compressive strength | Mpa | ≥85 | |
| Thermal conductivity | W/(m.k) | 128 | |
| Ash content | % | ≤0.03 | |
| C.T.E(100-600)°C | 10-6/°C | 4.0-5.2 | 5.5 |
| Shore hardness | ≥65 | 68 |
Products Application:
Electrodes / Vacuum furnace / Heaters / Heat shields /Electronic tube anodes / Melting and sintering moulds for various metals. Programmable properties
• High mechanical strength
• Oxidation resistance
• Chemical resistance
• Good sliding properties
• High thermal stability
• High thermal shock resistance
• Low wettability
• High corrosion resistance
• High thermal conductivity
• Good electrical conductivity
