Product Introduction:

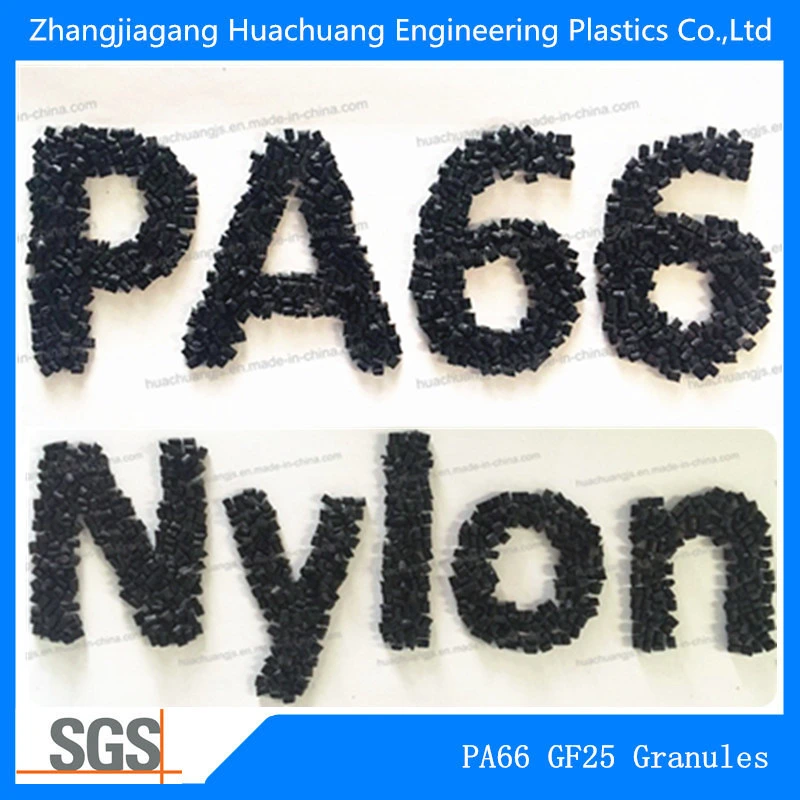

-Nylon/PA66 granules reinforced by fiberglass. The performance of final products of this raw material were in line with the national standard.
-The product is based on PA66 resin as basic, add glass fiber, efficient flame retardants and various additives, formed by twin-screw extrusion blending.
Advantage:
high mechanical strength
high toughness
high softening point
good wear resistance
self-lubrication
long-term work at higher temperatures
It has high CTI value , excellent electrical insulation , low smoke and low toxicity characteristics.
Details of related standard:
GB/T 23615.1-2009 Accessorial material for architectural aluminum alloy profiles -- Part 1: Thermal barrier strip of polyamide
EN 14024-2004 Metal profiles with thermal barrier -- Mechanical performance Requirement, proof and tests for assessment
YS/T 437-2008 Aluminium profiles moment of inertia calculation methods and computing software requirements
JG/T 174-2005 Thermal barrier strips for construction industry
GB 5237.6 -2012 Wrought aluminium alloy extruded profiles for architecture -- Part 6: Thermal barrier profiles
GB/T 8478-2008 Aluminium windows and doors
GB/T 8484-2008 Graduation and test for thermal insulating properties of doors and windows
JG 175-2011 Insulating aluminum alloy profiles with thermal barrier for buildings
Huachuang PA66 Granules Performance Table
1.Sample water content less than 0.2% by weight.
2.Norm laboratory condition:(23±2)ºC and (50±10)% relative humidity.
3.The specifications marked with "a" only applies to I-shape strip otherwise, the specifications concluded between supplier and buyer through consultation, shall be written in contract or purchase order.
About color:
The color of our products is black, but we also can customize according to customers' requirements.
Application:
Widely used in machinery, instrumentation, automotive parts, electrical and electronics, railways, household appliances, telecommunications, textile, sports and leisure goods, pipes and precision engineering products.
Packaging & Delivery:
Packaging details:25kg/bag
Delivery details: shipped in 7-15 working days after payment
Our Factory:
Don't hesitate to contact us if you have any questions.
Name:Camille Cai
Phone:0086-13584481777
Address:jinfeng town,zhangjiagang city,jiangsu province,china
-Nylon/PA66 granules reinforced by fiberglass. The performance of final products of this raw material were in line with the national standard.
-The product is based on PA66 resin as basic, add glass fiber, efficient flame retardants and various additives, formed by twin-screw extrusion blending.
Advantage:
high mechanical strength
high toughness
high softening point
good wear resistance
self-lubrication
long-term work at higher temperatures
It has high CTI value , excellent electrical insulation , low smoke and low toxicity characteristics.
Details of related standard:
GB/T 23615.1-2009 Accessorial material for architectural aluminum alloy profiles -- Part 1: Thermal barrier strip of polyamide
EN 14024-2004 Metal profiles with thermal barrier -- Mechanical performance Requirement, proof and tests for assessment
YS/T 437-2008 Aluminium profiles moment of inertia calculation methods and computing software requirements
JG/T 174-2005 Thermal barrier strips for construction industry
GB 5237.6 -2012 Wrought aluminium alloy extruded profiles for architecture -- Part 6: Thermal barrier profiles
GB/T 8478-2008 Aluminium windows and doors
GB/T 8484-2008 Graduation and test for thermal insulating properties of doors and windows
JG 175-2011 Insulating aluminum alloy profiles with thermal barrier for buildings
Huachuang PA66 Granules Performance Table
| NO. | Item | Unit | GB/T 23615.1-2009 | HC-Technical specification |
| Material Properties | ||||
| 1 | Density | g/cm3 | 1.3±0.05 | 1.28-1.35 |
| 2 | Linear expansion coefficient | K-1 | (2.3-3.5)×10-5 | (2.3-3.5)×10-5 |
| 3 | Vicat softening temperature | ºC | ≥230ºC | ≥233ºC |
| 4 | Melting point | ºC | ≥240 | ≥240 |
| 5 | Testing for tensile cracks | - | No cracks | No cracks |
| 6 | Shore hardness | - | 80±5 | 80-85 |
| 7 | Impact strength(Unnotched) | KJ/m2 | ≥35 | ≥38 |
| 8 | Tensile strength(longitudinal) | MPa | ≥80a | ≥82a |
| 9 | Elasticity modulus | MPa | ≥4500 | ≥4550 |
| 10 | Elongation at break | % | ≥2.5 | ≥2.6 |
| 11 | Tensile strength(transverse) | MPa | ≥70a | ≥70a |
| 12 | High temperature tensile strength(transverse) | MPa | ≥45a | ≥47a |
| 13 | Low temperature tensile strength(transverse) | MPa | ≥80a | ≥81a |
| 14 | Water resistance tensile strength(transverse) | MPa | ≥35a | ≥35a |
| 15 | Aging resistance tensile strength(transverse) | MPa | ≥50a | ≥50a |
2.Norm laboratory condition:(23±2)ºC and (50±10)% relative humidity.
3.The specifications marked with "a" only applies to I-shape strip otherwise, the specifications concluded between supplier and buyer through consultation, shall be written in contract or purchase order.
About color:
The color of our products is black, but we also can customize according to customers' requirements.
Application:
Widely used in machinery, instrumentation, automotive parts, electrical and electronics, railways, household appliances, telecommunications, textile, sports and leisure goods, pipes and precision engineering products.
Packaging & Delivery:
Packaging details:25kg/bag
Delivery details: shipped in 7-15 working days after payment
Our Factory:
Don't hesitate to contact us if you have any questions.
