Durable easy to install electrical PET sleeve cable braided sleeve with rope

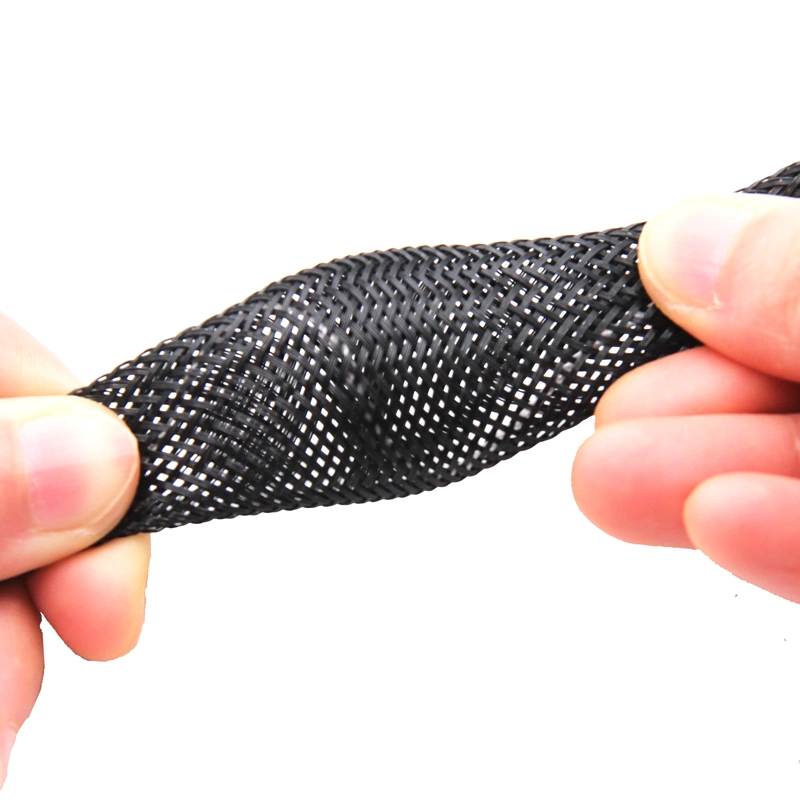

PET is braided from polyethylene terephthalate (PET) monofilament yarns. The material has a wide operating temperature range, is resistant to chemical degradation, UV radiation, and abrasion. Base on this, we add a rope inside that make the wires easy to install. The sleeving cuts easily and cleanly with a hot knife and once installed, will beautify and protect any wire, hose or cable application. Most importantly, it saves a lot of installation time!!
Specification
a. High abrasion resistance
b. Flame retardant
c. Thermal insulation performance
d. Flexibility
e. Environmental protection
f. Protect the wiring harness
g. Easy to install
Datasheet
Application
Protect the wires in computer/machine
Organize wire/cable Harness
Used in Aotomotive engine
Customers' Review
Company Profile
PET is braided from polyethylene terephthalate (PET) monofilament yarns. The material has a wide operating temperature range, is resistant to chemical degradation, UV radiation, and abrasion. Base on this, we add a rope inside that make the wires easy to install. The sleeving cuts easily and cleanly with a hot knife and once installed, will beautify and protect any wire, hose or cable application. Most importantly, it saves a lot of installation time!!
Specification
a. High abrasion resistance
b. Flame retardant
c. Thermal insulation performance
d. Flexibility
e. Environmental protection
f. Protect the wiring harness
g. Easy to install
Datasheet
| Nominal size(W) | Part No. | Expanded range | Packing(L) | ||
| Inch | mm | Min.(I) | Max.(O) | Standrd spool | |
| 1/8" | 3.0 | BS-PETR003 | 1.0 | 6.0 | 500m/roll |
| 1/4" | 6.0 | BS-PETR006 | 3.0 | 9.0 | 500m/roll |
| 5/16" | 8.0 | BS-PETR008 | 5.0 | 16.0 | 500m/roll |
| 3/8" | 10.0 | BS-PETR010 | 7.0 | 19.0 | 500m/roll |
| 1/2" | 12.0 | BS-PETR012 | 8.0 | 24.0 | 250m/roll |
| 5/8" | 16.0 | BS-PETR016 | 10.0 | 27.0 | 250m/roll |
| 3/4" | 20.0 | BS-PETR019 | 14.0 | 30.0 | 250m/roll |
| 1" | 25.0 | BS-PETR025 | 18.0 | 35.0 | 250m/roll |
| 1-1/4" | 30.0 | BS-PETR032 | 20.0 | 50.0 | 100m/roll |
| 1-1/2" | 40.0 | BS-PETR038 | 30.0 | 60.0 | 100m/roll |
| 1-3/4" | 45.0 | BS-PETR045 | 35.0 | 75.0 | 100m/roll |
| 2" | 50.0 | BS-PETR050 | 40.0 | 80.0 | 100m/roll |
| 2-1/2" | 64.0 | BS-PETR064 | 45.0 | 105.0 | 100m/roll |
| 3" | 76.0 | BS-PETR076 | 64.0 | 120.0 | 100m/roll |
Application
Protect the wires in computer/machine
Organize wire/cable Harness
Used in Aotomotive engine
