ETERNOO MACHINERY CO., LTD is an international company combining design, manufacture, sale. We are very professional on mixing, separation, and filtration equipment. Now we mainly produce 6 series of static mixer, which is SV, SK, SH, SL, SX, SD series, and all kinds of pipe-line filters, precision filters, automatic self cleaning and back washing filters and the other water treatment equipment and accessories.
Static mixer product is widely used for petroleum industry, chemical industry, pesticide, paints, food industry, paper making, environment protection industry, mining and so on, mixing, extraction and reaction.

Static Mixer is precision engineered device for the continuous mixing of fluid materials.Normally the fluids to be mixed are liquid, but static mixers can also be used to mix gas streams, disperse gas into liquid or blend immiscible liquids. The energy needed for mixing comes from a loss in pressure as fluids flow through the static mixer.One design of static mixer is the plate-type mixer and another common device type consists of mixer elements contained in a cylindrical (tube) or squared housing. Mixer size can vary from about 6 mm to 6 meters diameter. Typical construction materials for static mixer components included :
SS304, SS316L, PP, TEFLON, PVDF, PVC, CPVC, Acetal Resin etc.

Static Mixer are manufacturing according to JB/T7660-1995<static mixer standards>,to design, produce and test.
Static mixer model series:SV,SK,SX,SH,SL,SD
Technical parameters:


(1)SV static mixer




      SV element is cylinder made of specific bellow plates, the max. Dispersion:1~2um,fluid to fluid uniformity coefficient <5%,Applicable to viscosity<10^{2  CP} Liquid to liquid, Gas to gas, Liquid to gas mixing, emulsification, reaction, absorb, extraction, heat transfer etc.

(2)SK static mixer

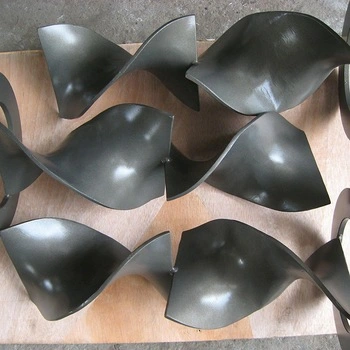

SK element is welded by single pore left and right twisted spiral plate. Max. dispersion:10um,fluid to fluid and fluid to solids uniformity coefficient <5%

Applicable to  mixing, emulsification, reaction, absorb, extraction, heat transfer of Chemical, petroleum, medic ion, precision chemical, plastics, color matching, environment protecting, synthetic fibre etc. departments. Especially suitable to small flow along with impurity and high viscosity medium <10⁶CP.
(3)SX static mixer




SX element is made of many X shape cross elements. uniformity coefficient <5%.
Applicable to middle and high viscosity <10⁴CP fluid to fluid reaction, mixing, absorb process or liquids who producing high polymer products, especially for bigger capacity.
(4)SL static mixer




SL element is made of half side of X shape element. fluid to fluid and fluid to solids uniformity coefficient <5%

Applicable to chemical, petroleum and greese industry, viscosity<10⁶CP or high polymer mixing, and heat exchanging, mixing at same time.
(5)SH static mixer




 SH element is made of double pores, there is fluid re-distribute space between elements. Fluid  to fluid and fluid to solids uniformity coefficient <5%

Applicable to mixing, emulsification, color matching, plastic injection, heat exchanging process of precision chemical industry,  petroleum, greese, plastics, synthetic fibre, mining industry. Especially for clean medium with higher mixing requirements viscosity<10⁶CP.
(6)SD static mixer
